Widgit Move Tool
This tool lets you modify a curve or mesh in a very controlled manner.
When you are editing a curve you can use LMB+Shift to choose the widgit move
tool.
To use Widgit Move on a mesh you must first convert the object to a mesh using "Object Menu/Convert to Mesh" or 'K' on the keyboard. Then select the Widgit Move tool from the Tools Panel.
Using Widgit Move on a Curve
Select a curve by dragging with the RMB. It will turn yellow when
selected.
|
|
Select the widgit move tool from the Tools Panel, or press "D" to
select the Curve Drawing tool type, then hold Shift to access the widgit
move tool.
The cursor should change to this:
Now hold the LMB down on part of the curve. You will notice the curve turns
yellow under the cursor, and turns to red further from the cursor. I have
exaggerated this in the image!
|
|
Drag mouse around, keeping the button held down. You will see the
curve follow your cursor.
Try dragging a different part of the curve. The the yellow parts of the curve
follow your cursor, the red parts remain close to their original positions.
|
|

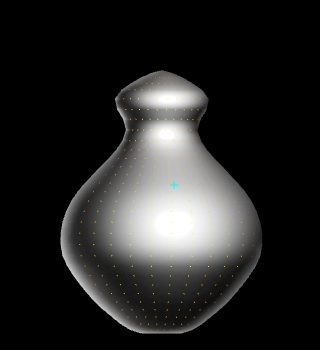

Select a mesh by dragging with the RMB. Its vertices or curves will turn yellow when
selected.
If the object has curves, press 'K' or "Object Menu/Convert to Mesh" to turn it into a mesh.
|
|
Select the widgit move tool from the Tools Panel
The cursor should change to this:

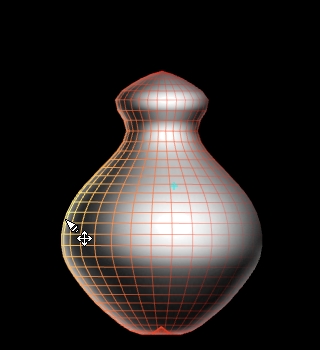

Now hold the LMB down on part of the mesh. You will notice the mesh turns
yellow under the cursor, and turns to red further from the cursor.
|
|
Drag mouse around, keeping the button held down. You will see the
mesh follow your cursor.

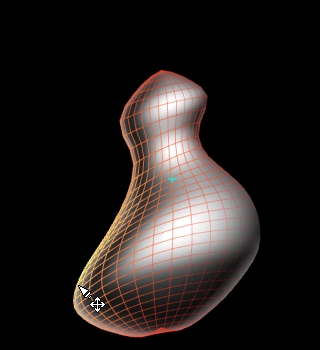

Try dragging a different part of the mesh. The the yellow parts of the curve
follow your cursor, the red parts remain close to their original positions.
|
|
Widgit Move Controls
You can adjust the shape and area of effect of the widgit tool on
the Widgit Move Panel.
Try dragging on the shape and scale controls to change the area and falloff of
the effect.
|
|
This examples was made from a simple tube, with Widgit Move scale of 15% and various shapes. Notice how the shape that the mesh drags out is the same as the shape in tool settings.
|
|
Unlike Curvy Maps, you can distort the mesh in any direction and make overhangs and complex shapes. If the mesh gets a bit rough press 'S' to smooth it down. Here is the shape from above after some more Widgit Move editing.
|
|
|
